SEKI HB2&HB5 |
|
|
|
Product Name：SEKI HB2&HB5 |
|
Hits：8946 |
|
Product Description： |
|
Features Snap Action Available with Both of Normally Closed Type and Normally Open Type Contacts Customized Wire Connection and Bracket Type Available Safety Design according to IEC Standard Single Operation Fuse Disc Available Contacts : Open on temperature rise, no closure unless the temperature 0°C or below -35°C
Application Automatic coffeemakers, Water heaters, Sandwich toasters, Dishwashers, Boilers, Dryers, Electric heaters, Washing machines, Refrigerators, Microwave ovens, Water purifiers, Bidet, etc.
Tolerance Indicated temperature ± 3℃, ± 5℃ Temperature Setting Range (at no load) -20℃~180℃
ON-OFF Differential Temperature (general) Min 7~10K
Cycle Life(Resistive Load) 15A/125V AC 100,000 cycles 7.5A/250V AC 100,000cycles

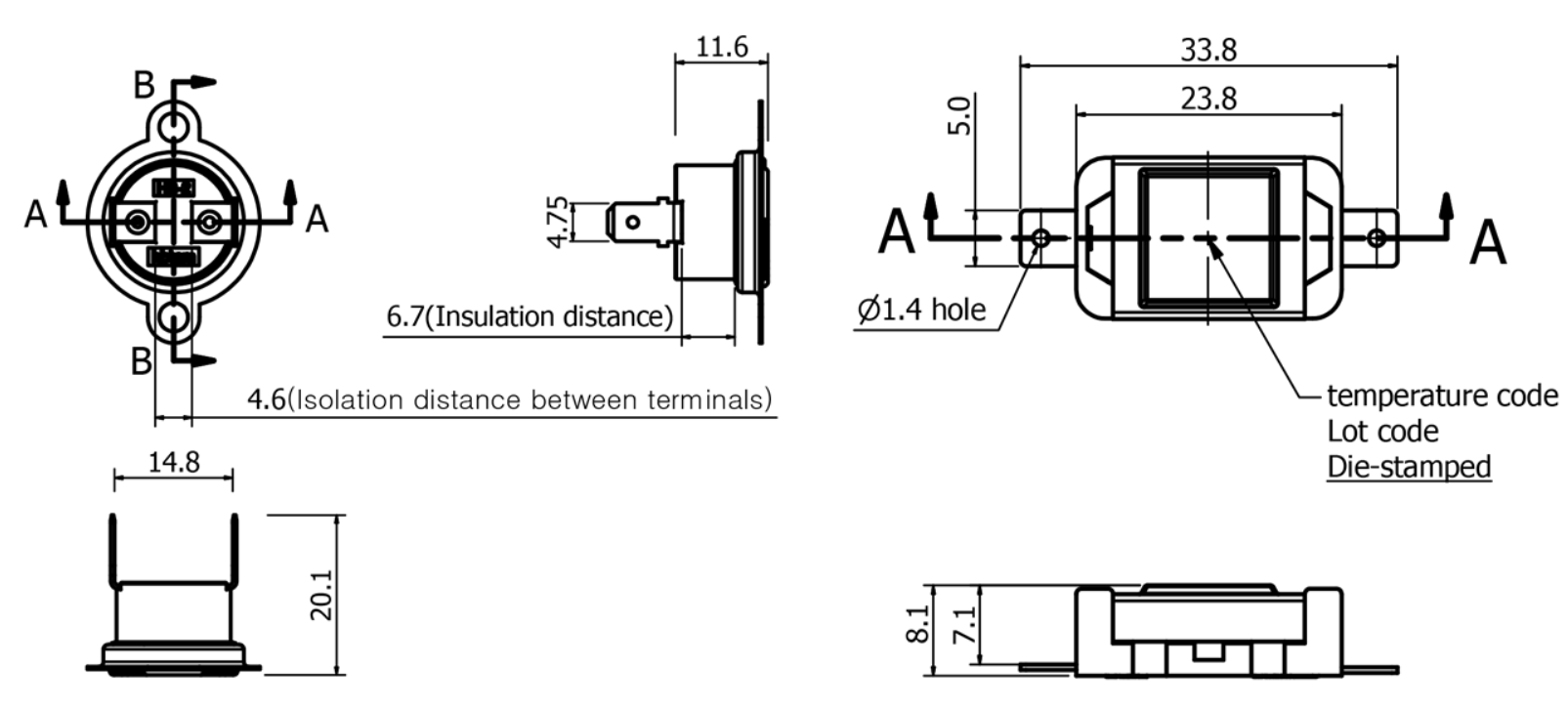

Safety Approvals UL, TUV, CQC, KC Production Size

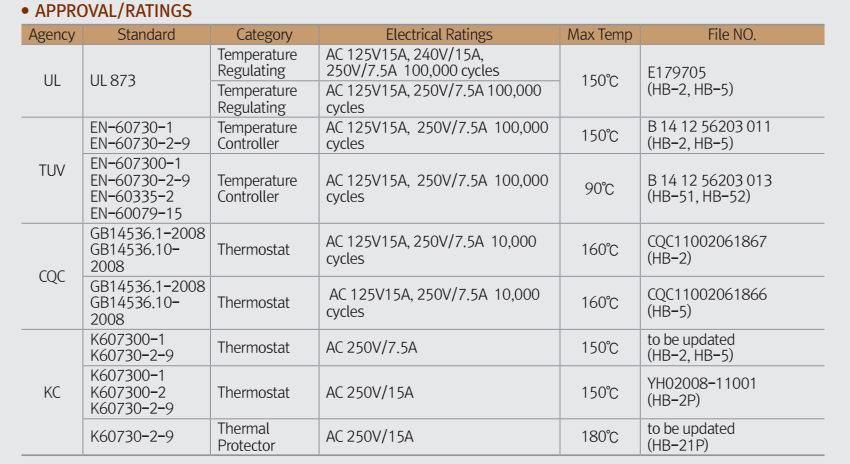

Safety approve List& Products Pictures
|
